Station 13 · 02 Module Stacking & Welding

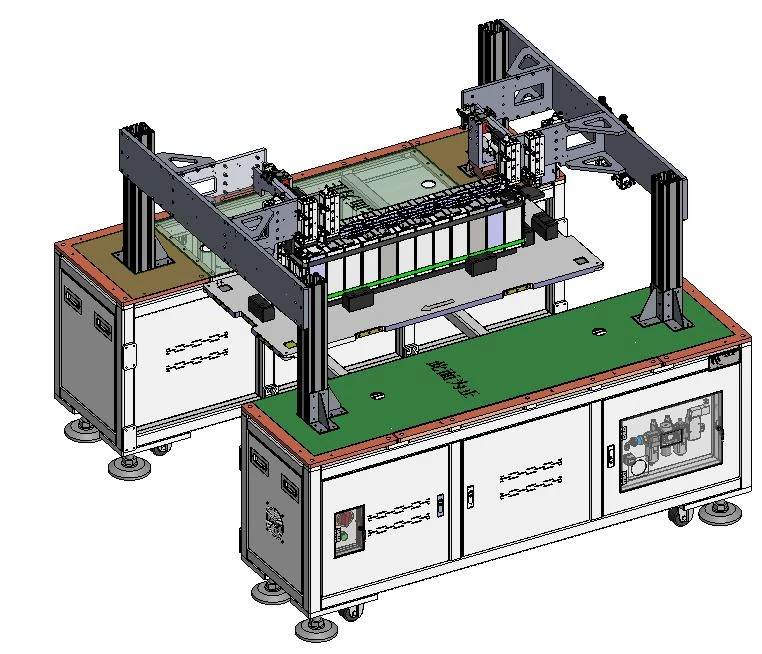

Module EOL Tester
Tests insulation, withstand voltage, total voltage & resistance, and continuity.
- Insulation test
- DC 1000 V, ≥ 500 MΩ
- Withstand test
- DC 2800 V, leakage ≤ 10 mA
What it does
- Tests insulation, withstand voltage, total voltage & resistance, and continuity.
- On arrival the pallet lifts, probes descend and testing starts automatically.
Design features
- Modular build with integrated conveyor and aviation connectors
Key parameters
| Insulation test | DC 1000 V, ≥ 500 MΩ |
|---|---|
| Withstand test | DC 2800 V, leakage ≤ 10 mA |
Where it sits on the line
13 Module EOL test
