Station 03 · 04 · 01 Cell Processing

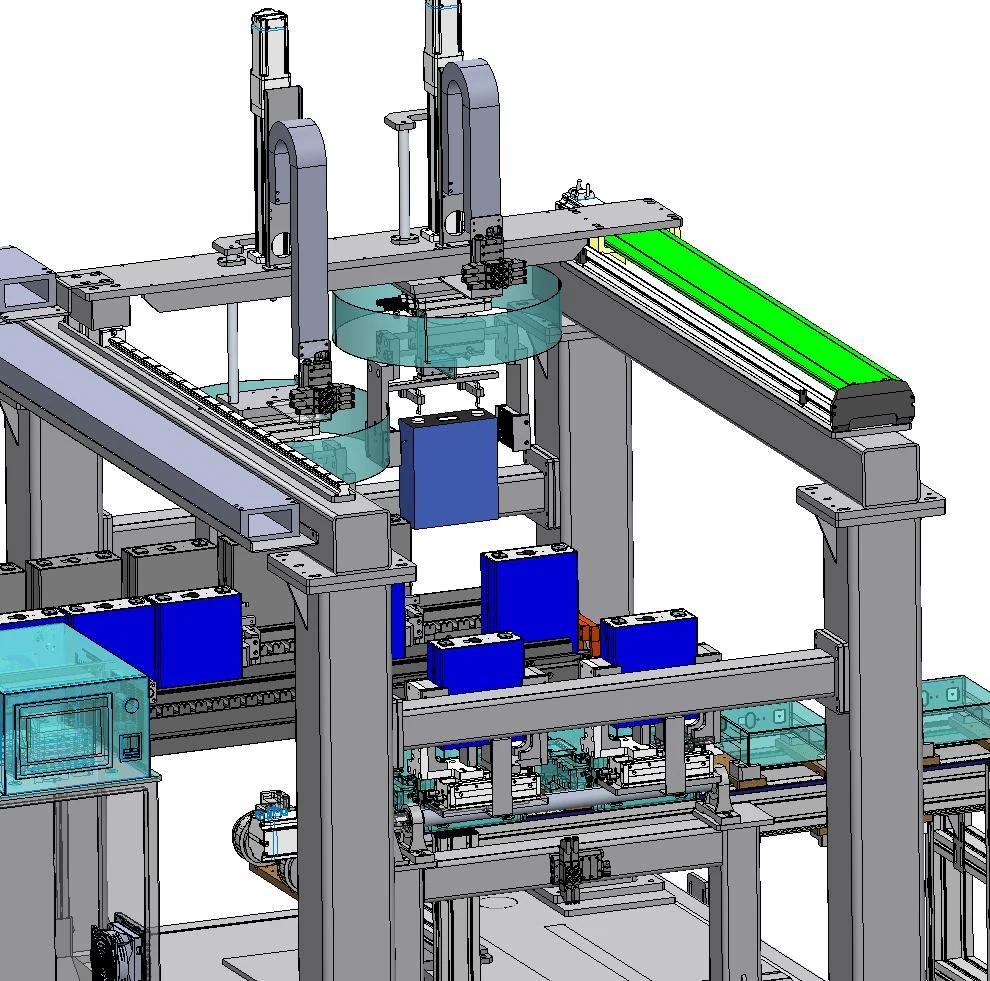

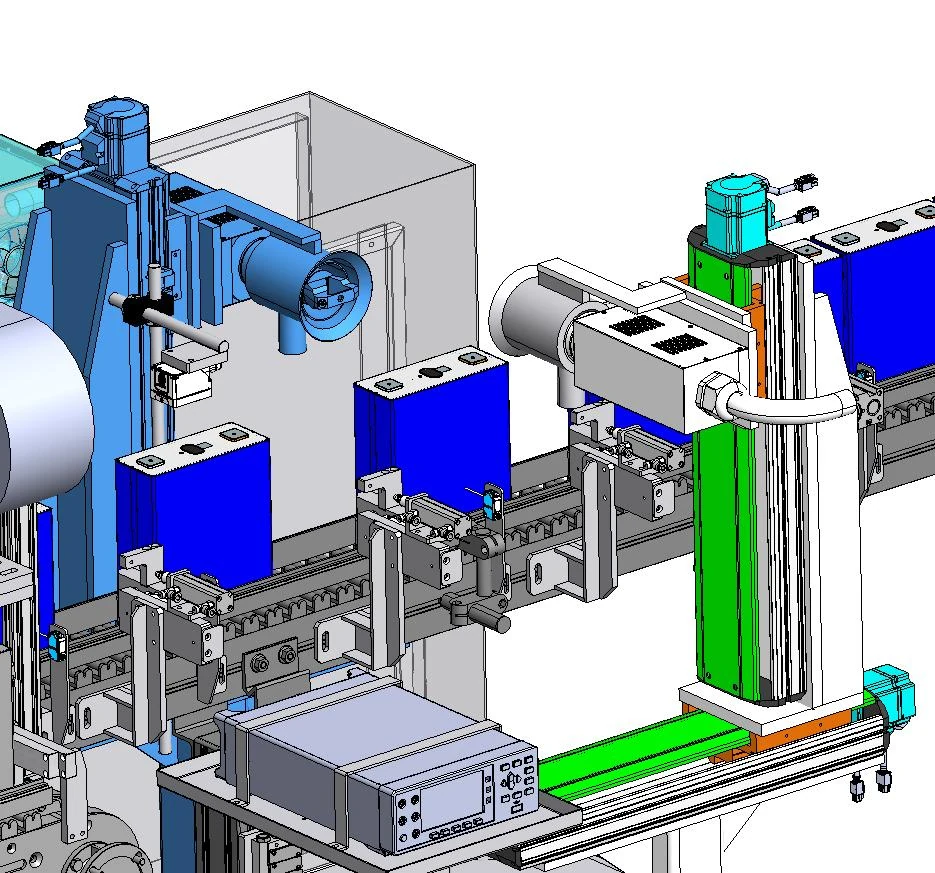

Cell Scanning, Testing & Sorting Machine
Cells are automatically scanned and tested on arrival; NG cells are rejected automatically.
- Scan success rate
- ≥ 99.9 % (excl. defective labels)
- Voltage accuracy
- ±(0.01 % rdg + 3 dgt)
- IR accuracy
- ±(0.5 % rdg + 10 dgt)
What it does
- Cells are automatically scanned and tested on arrival; NG cells are rejected automatically.
- OK cells are transferred to the downstream line for manual adhesive application.
Design features
- Automatic testing, sorting and accumulation
- Timing-belt carrier line for precise transfer
- NG gaps refilled automatically, no extra refill unit
- Adjustable stop-and-split mechanism
Key parameters
| Scan success rate | ≥ 99.9 % (excl. defective labels) |
|---|---|
| Voltage accuracy | ±(0.01 % rdg + 3 dgt) |
| IR accuracy | ±(0.5 % rdg + 10 dgt) |
Where it sits on the line
03 Barcode scan / OCV test · 04 NG reject / OK refill
