Compatibility
Built for 314 Ah.
Ready for 587 Ah.
314 Ah is the mainstream ESS cell today and 500 Ah+ formats are scaling fast. The line is designed around 314 Ah and anticipates 587 Ah, with wide module and PACK envelopes.
- Reference cell
- 314Ah
- Future-ready
- 587Ah
- Cell size
- 207×173×72mm
- Module length
- 300–1000mm
- PACK length
- 600–1200mm
Product & compatibility
Thirteen cells.
One module.

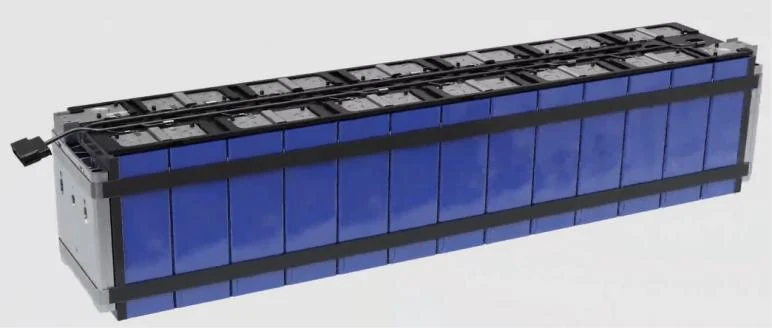

Built around a 1P13S reference module. Scroll to take it apart and see which station handles each part.
The line is designed with 587 Ah large-format cells in mind. Final dimensions follow your cell specification.
CELL

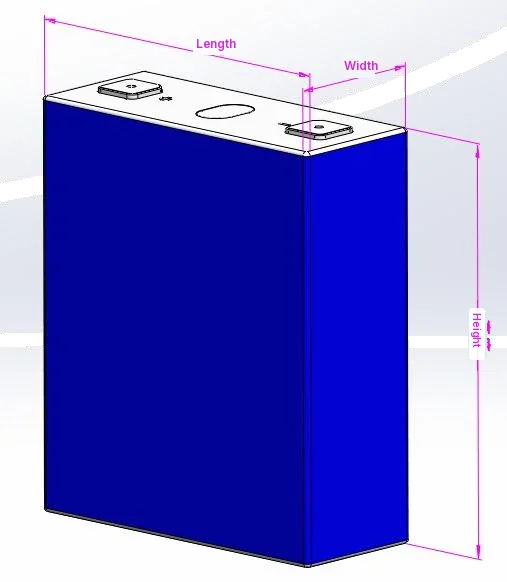

207×173×72mm
H × W × T, ±0.5 mm
MODULE RANGE
Height100–240Width150–370Length300–1000mm

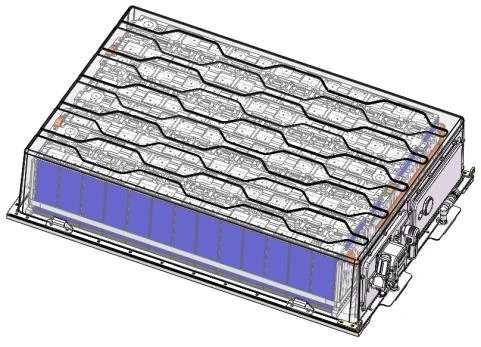

PACK RANGE
Height100–250Width300–800Length600–1200mm
- 08Terminal addressing · polarityAccuracy ≤ ±0.2 mm
- 11Busbar laser welding6 kW · ≥1.0 mm penetration
- 13Module EOL testDC 2800 V · ≥500 MΩ
- 07End-plate gluing & fittingManual · twin stations
- 03Cell scan / OCV±(0.01 % rdg + 3 dgt)
- 07Servo press · steel strap0–8000 N · 300–1100 mm
Envelopes & plant requirements
| Equipment | Prismatic ESS module & PACK assembly line |
|---|---|
| Design takt | 8 PPM (counted in cells, 1P13S reference module) |
| Reference cell | 314 Ah; designed with 587 Ah cells in mind |
| Line yield | ≥ 99 % (equipment-related defects only) |
| Stations | 21 numbered stations (incl. twin and multi-station groups) |
| Operators | About 21: cell processing 3, module 6, PACK about 12 |
| Power supply | 3-phase 5-wire 380 V ±5 %, 50 Hz, rated 250 kW |
|---|---|
| Compressed air | 0.5–0.7 MPa, flow ≥ 3000 L/min |
| Shielding gas | Nitrogen 0.5 MPa, 40 L/min |
| Floor load | ≥ 800 kg/m² |
| Footprint | 55 m × 9 m × 3.5 m (excl. warehouse & logistics aisles; adaptable to your plant) |
| H | W | L / T | |
|---|---|---|---|
| Cell 314 Ah | 207 ± 0.5 | 173 ± 0.5 | 72 ± 0.5 |
| Module | 100–240 | 150–370 | 300–1000 |
| PACK | 100–250 | 300–800 | 600–1200 |
Put 55 metres of line
into your plant.
Share your cell spec, module design and plant constraints. Our engineers will come back with a layout and configuration.
