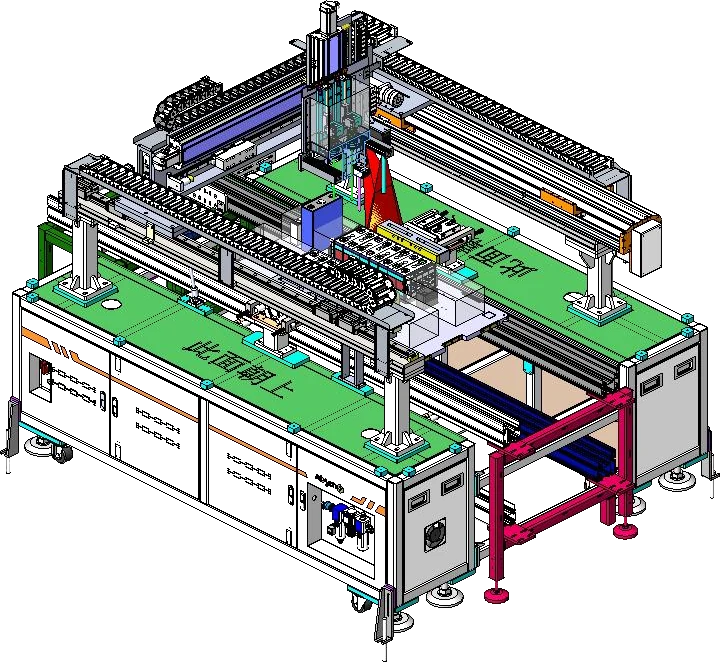

Station 08 · 02 Module Stacking & Welding
Polarity Detection & Terminal Addressing
Photographs and locates every terminal in the module.
- Motion speed
- 200–300 mm/s, vibration-free
- Addressing accuracy
- ≤ ± 0.2 mm
What it does
- Photographs and locates every terminal in the module.
- Checks the polarity of each cell from the same images.
Design features
- Modular build with integrated conveyor and aviation connectors
- One vision system for both positioning and polarity
Process sequence
- 01Pallet in
- 02Lift, locate & scan
- 03Image terminals / judge polarity
- 04Reset
- 05Pallet out
Key parameters
| Motion speed | 200–300 mm/s, vibration-free |
|---|---|
| Addressing accuracy | ≤ ± 0.2 mm |
Where it sits on the line
08 Terminal addressing
