Station 07 · 02 Module Stacking & Welding
Module Stacking & Pressing Station

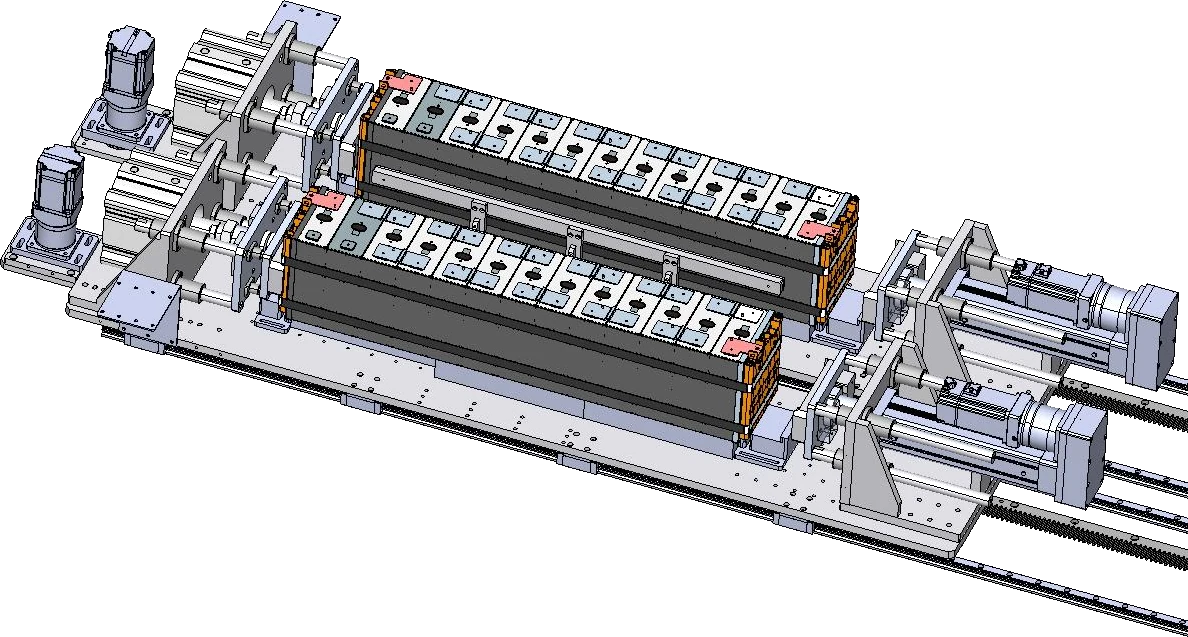

Stacks and presses tested cells into modules and binds module codes; includes press tooling, worktable and control assembly.
- Press force
- 0–8000 N
- Press length
- 300–1100 mm (swap press blocks by range)
What it does
- Stacks and presses tested cells into modules and binds module codes; includes press tooling, worktable and control assembly.
- Twin stations on both sides of the line sustain the 8 PPM takt.
Design features
- Large-bore cylinder datum clears the pallet path while locating
- Servo-driven press end for stable force and length
- Load cell monitors press force in real time
Process sequence
- 01Pallet in
- 02Pre-lay lower strap
- 03Stack cells
- 04Auto press
- 05Fit steel strap
- 06Pallet out
Key parameters
| Press force | 0–8000 N |
|---|---|
| Press length | 300–1100 mm (swap press blocks by range) |
