Station 11 · 02 Module Stacking & Welding
Busbar Laser Welding Machine
Laser-welds module busbars to connect the cells in series.
- Laser power
- 6 kW
- Welding speed
- 50–100 mm/s
- Penetration / width
- ≥ 1.0 mm / ≥ 1.5 mm
- Pull-out force
- ≥ 1000 N
What it does
- Laser-welds module busbars to connect the cells in series.

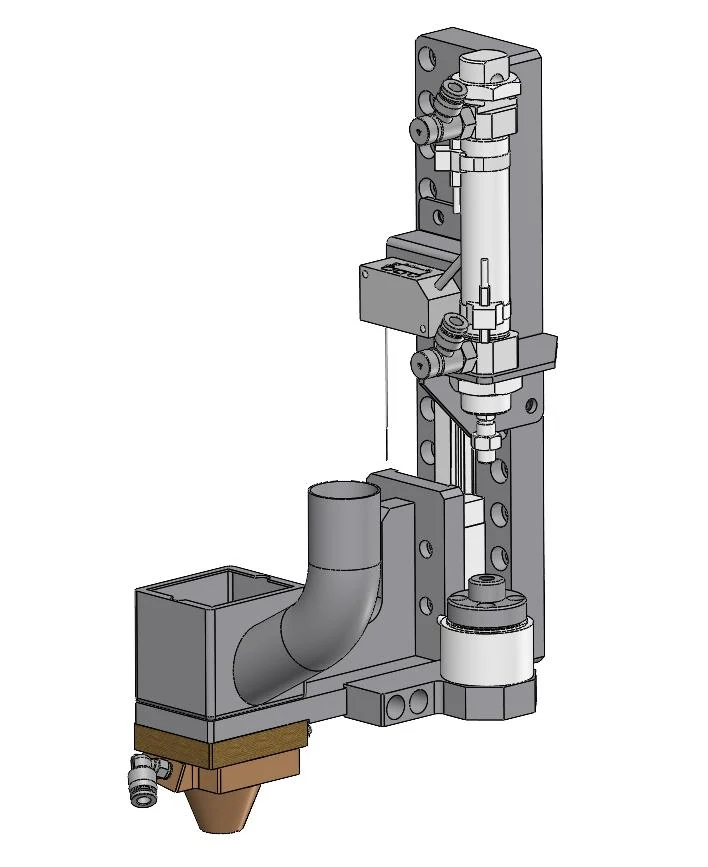

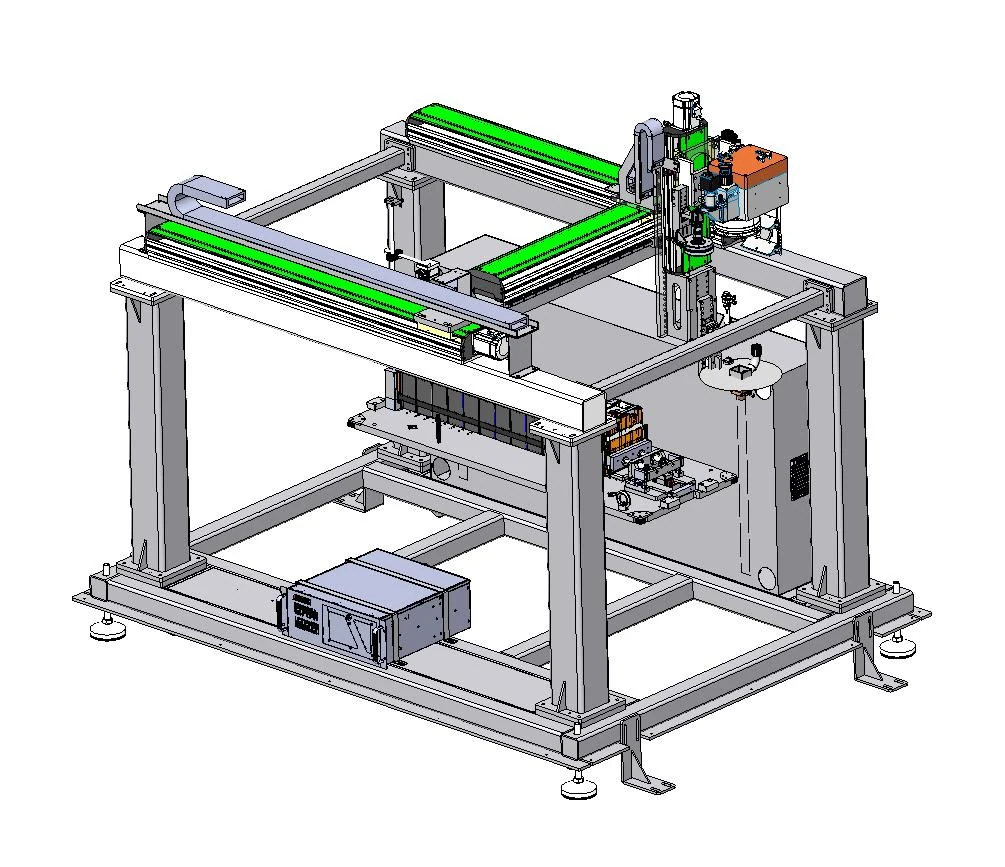

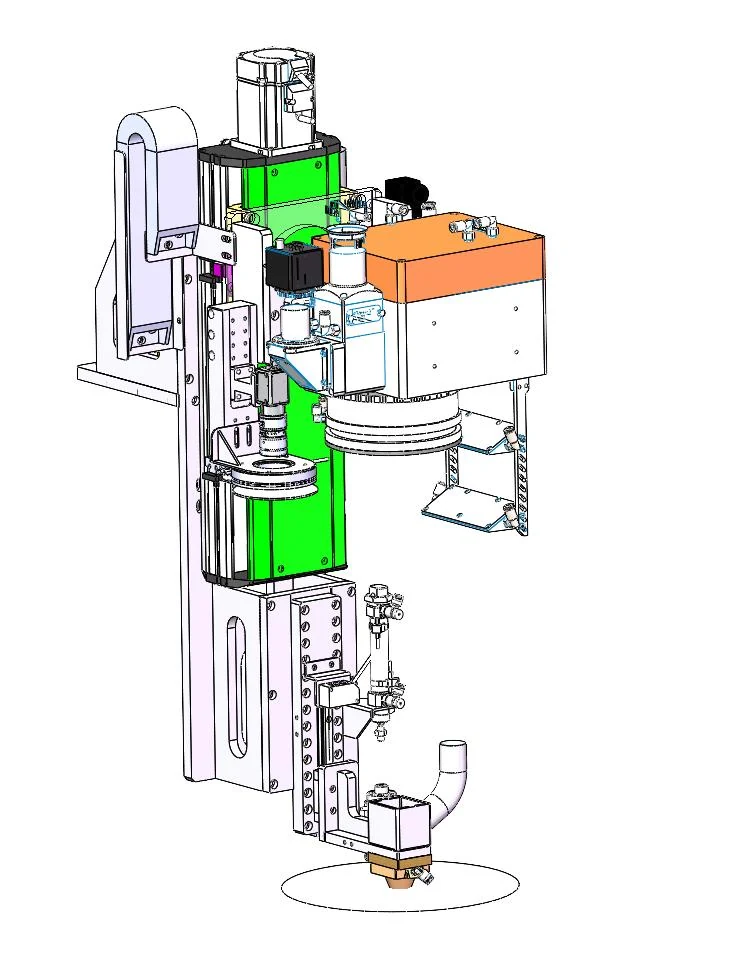

- With the pallet lifted and located, vision, clamping and the weld head move on a 3-axis gantry to clamp, range and weld every joint.
Design features
- In-line single-station 3-axis gantry with galvo scanning
- Cylinder-driven single-point clamping for easy changeover
- Handles single- and double-row modules
Key parameters
| Laser power | 6 kW |
|---|---|
| Welding speed | 50–100 mm/s |
| Penetration / width | ≥ 1.0 mm / ≥ 1.5 mm |
| Pull-out force | ≥ 1000 N |
Where it sits on the line
11 Busbar laser welding
