Station 17 · 03 PACK Assembly & Test
Lower-Housing Thermal Adhesive Dispenser
Dispenses thermal structural adhesive on the housing floor before modules are boxed.
- Vision accuracy
- ± 0.2 mm
- Path accuracy
- ± 2 mm
- Volume accuracy
- 5 %
What it does
- Dispenses thermal structural adhesive on the housing floor before modules are boxed.

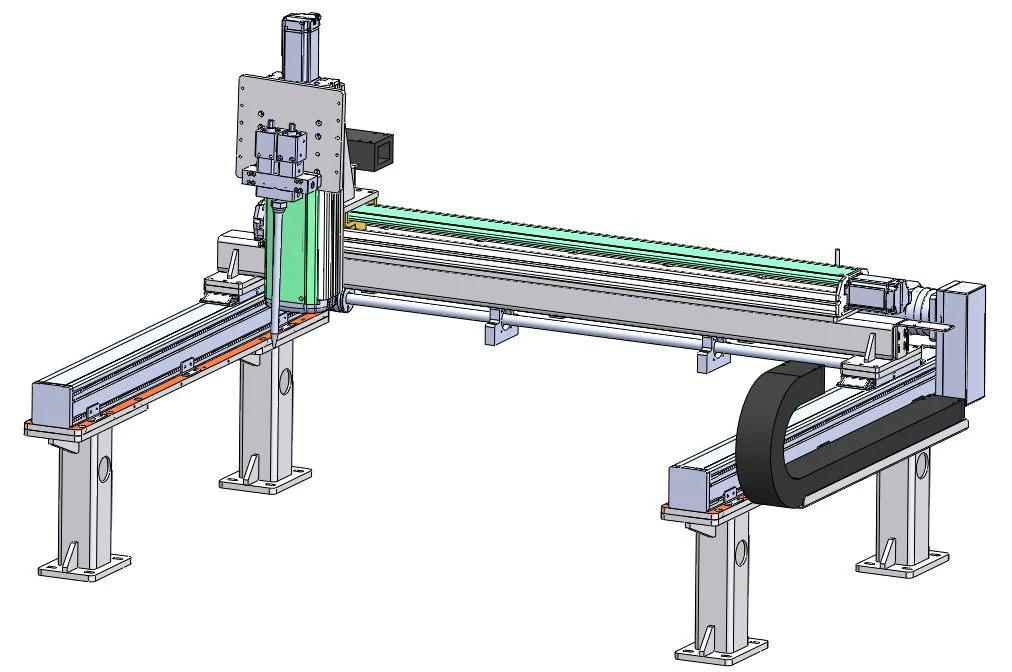

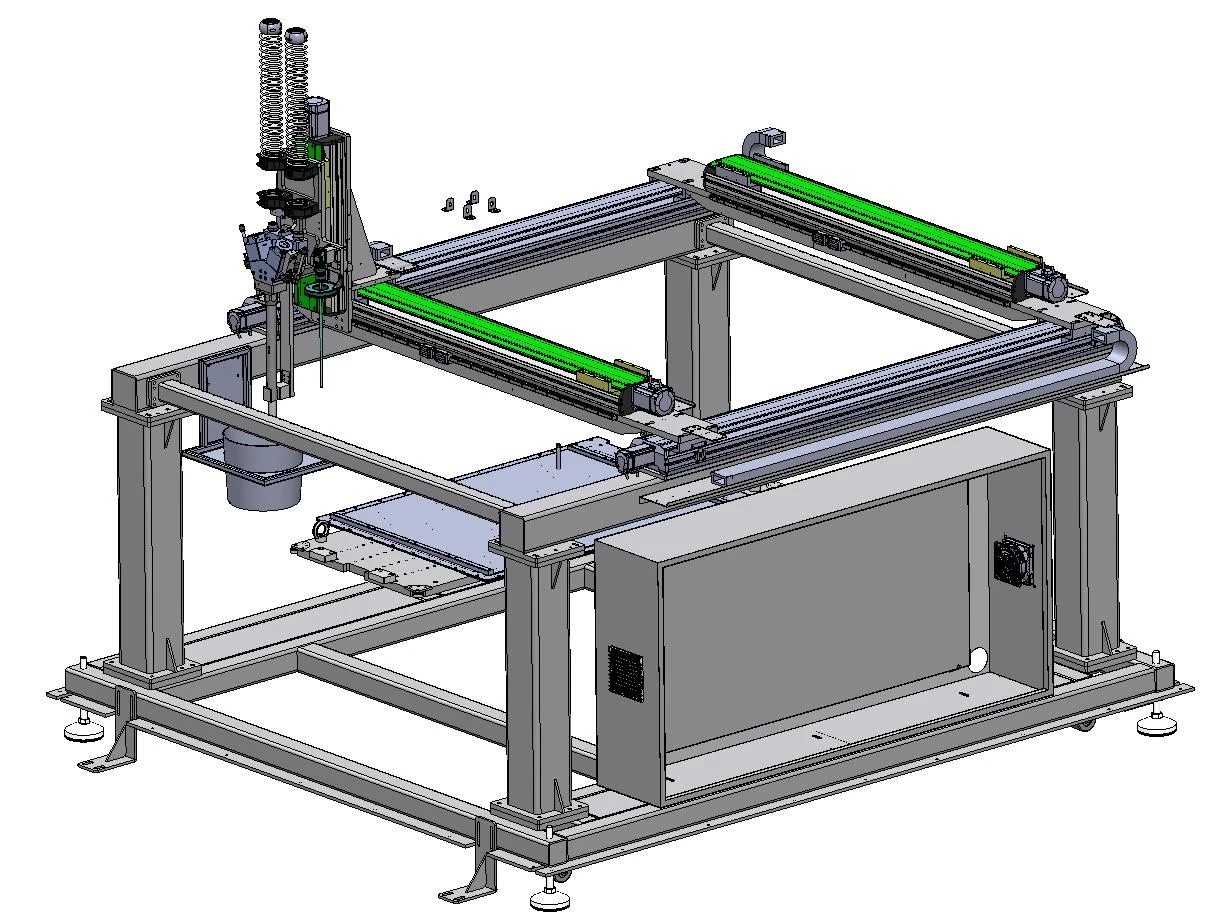

- After lift-and-locate, a 3-axis system images datum features, then dispenses along the corrected path.
Design features
- Vision compensates path deviation
- Pressure and volume data to MES via Profinet and more
- Dual-servo metering with live pressure curve
Key parameters
| Vision accuracy | ± 0.2 mm |
|---|---|
| Path accuracy | ± 2 mm |
| Volume accuracy | 5 % |
Where it sits on the line
17 Lower-housing thermal adhesive dispensing
